Cannabinoid Receptor 2 Deficiency in Haematopoietic cells Aggravates Early Atherosclerosis in LDL Receptor Deficient Mice
Dianne J.M Delsing1, *, Frank P Leijten1, Karin Arts1, Hans van Eenennaam1, Anja Garritsen1, Marion J.J Gijbels2, 3, Menno P.J de Winther2, Andrea van Elsas1
Identifiers and Pagination:Year: 2011
First Page: 15
Last Page: 21
Publisher Id: TOCMJ-5-15
Article History:Received Date: 6/12/2010
Revision Received Date: 27/12/2010
Acceptance Date: 30/12/2010
Electronic publication date: 15/2/2011
Collection year: 2011
open-access license: This is an open access article licensed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted, non-commercial use, distribution and reproduction in any medium, provided the work is properly cited.
The cannabinoid receptor 2 (CB2) has been implicated to play a role in various inflammatory processes. Since atherosclerosis is currently considered a chronic inflammatory disease, we studied the effect of haematopoietic CB2 deficiency on atherosclerosis development.
Methods and results:
To investigate the effect of CB2 deficiency in immune cells on atherogenesis in vivo, a bone marrow transplantation was performed in irradiated LDL receptor deficient mice (LDLr-/-), using CB2 deficient (CB2-/-) or wildtype (WT) donor mice. After 12 weeks on a high fat-high cholesterol diet, en face analysis showed that atherosclerosis in the aortic arch was significantly increased in CB2-/- transplanted animals (6.40 ± 3.21%) as compared to WT transplanted mice (3.85 ± 1.61%). Although the total lesion area in the aortic root was not significantly different between WT and CB2-/- transplanted mice (0.45 ± 0.13 mm2 and 0.51 ± 0.17 mm2, respectively), CB2-/- transplanted mice showed a significantly larger plaque area (0.13 ± 0.07 mm2) than WT transplanted mice (0.08 ± 0.05 mm2) in the aortic valve in which atherogenesis is in an earlier stage than in the other aortic valves.
Lack of endocannabinoid signaling via the CB2 receptor aggravates early atherosclerosis development in LDLr-/- mice, suggesting that CB2 specific activation may prevent the development of atherosclerosis.
Rather than simply a disease caused by elevated plasma lipid levels, atherosclerosis is nowadays also considered to be a chronic inflammatory condition [1-3]. Already at the onset of atherogenesis, monocytes from the circulation migrate into the arterial wall to differentiate into macrophages, start to accumulate cholesterol and produce inflammatory mediators. The subsequent attraction of additional inflammatory cells, migration and proliferation of smooth muscle cells, production of plaque destabilizing factors and necrosis can ultimately lead to acute coronary events, such as myocardial infarction or stroke .
Cannabinoids have been described to have immunomodulatory activities . Since the cannabinoid receptor 1 (CB1) is predominantly expressed in the central nervous system , and the cannabinoid receptor 2 (CB2) is highly expressed in immune cells , the immune regulatory effects of cannabinoids have been mainly ascribed to CB2. It needs to be reminded, however, that expression profiles for CB1 and CB2 are not mutually exclusive. Endogenous cannabinoids or synthetic ligands for cannabinoid receptors have been reported to modulate pro- and anti-inflammatory cytokine production , inflammatory cell spreading , migration [9, 10] and B- and T-cell proliferation . Also in more complex models of inflammation, such as oxazolone-induced dermatitis  and collagen-induced arthritis in the mouse , cannabinoid receptor ligands have been shown to have potent anti-inflammatory effects (reviewed in ).
Recently, it was described that the cannabinoid derivative Δ9-tetrahydrocannabinol (THC) is able to reduce atherosclerosis development in apolipoprotein E knockout mice . Subsequent in vitro investigations suggested that THC may exert its effect via inhibition of the TH1 response and reduction of monocyte migration . Since the effects could be counteracted by a CB2 receptor antagonist, SR144528, the authors concluded that the effects of THC were mediated through CB2. It has, however, just now been described that THC also acts at peroxisome proliferator-activated receptor (PPARs), thereby potentially inducing cardioprotective effects .
To rule out the possibility that the above mentioned immune modulations might be caused or influenced by off-target activity of cannabinoid compounds, we investigated the effect of CB2 receptor deficiency on atherosclerosis development. The CB2 receptor deficient mouse has been described to show compromised immunomodulation in vitro  and in vivo . In the present study, a bone marrow transplantation was performed to specifically investigate the effect of haematopoietic CB2 deficiency, and thereby lack of endocannabinoid signaling via CB2, on atherosclerosis development in LDL receptor knockout mice.
MATERIALS AND METHODOLOGY
Female LDL receptor knockout mice (LDLr-/-, n=40) were purchased from the Jackson Laboratory (Bar Harbor, MA, USA) and used as acceptor mice. CB2 receptor knockout mice (CB2-/-) were obtained from Dr. Andreas Zimmer (University of Bonn, Germany) and bred at Schering-Plough, Oss. Both strains of mice had been backcrossed to the C57Bl/6 background for at least 10 generations. Male CB2-/- mice (n=6) and wildtype (WT) controls (n=6) were used as donor mice for the bone marrow transplantation. All animals were kept on a regular chow diet (SDS, Special Diet Services, Witham, UK), until the bone marrow transplantation. The experiments were approved by the Animal Welfare Committee of MSD, Oss.
Bone Marrow Transplantation
Animals were maintained in filter-top cages and given acidified drinking water (pH=2.0) supplemented with neomycin (100mg/l, Sigma) and polymyxin B sulfate (60.000 U/l, Sigma) from 1 week before transplantation until 4 weeks after.
Prior to irradiation, the acceptor mice were anaesthetised by intraperitoneal injection with 100 mg/kg ketamine (Alfasan, The Netherlands) and 10 mg/kg xylazine (Eurovet, The Netherlands) in saline. Subsequently, animals were subjected to 8 Gy of total body irradiation using a 137Cs source (Gammacell 3000 Elan, MDS Nordion, Canada). One day after irradiation, acceptor mice were transplanted with bone marrow cells from either WT or CB2-/- mice by injection of 1 *107 donor cells into the tail vein.
Four weeks after transplantation, animals were put on a high fat diet (Arie Blok, Woerden, The Netherlands) containing 16% fat and 0.15% cholesterol. After 12 weeks on the diet, animals were sacrificed and the hearts and aortic arches were isolated for further analysis. Aortic arches and hearts were stored overnight in phosphate-buffered formalin solution (4%) and the hearts were embedded in paraffin. The aortic arches were cut open via the outer curvature and fixed onto a silicone-covered petridish (Austerlitz insect pins 0.025 mm, finescience.com). Subsequently, the tissue was stained with Oil Red O ﴾Sigma-Aldrich, Zwijndrecht, The Netherlands) and plaque size was quantified using a Zeiss Axioplan microscope and IDTCC software. Serial cross sections (4 µm) of the heart throughout the entire aortic valve area were used for histological analysis. Sections were stained with haematoxylin-eosin (HE). Per mouse, 4 sections (with intervals of 40 µm) were used for quantification and qualification of atherosclerotic lesions. For determination of severity of atherosclerosis, the lesions were classified into five categories (type I-V) as described before : I) early fatty streak, II) regular fatty streak, III) mild plaque, IV) moderate plaque, V) severe plaque. In addition to plaque severity, the degree of collagen deposition, necrosis, monocyte adherence, inflammatory infiltrations and large foam cell content was scored by an experienced pathologist (a score of 0-4 was assigned, MG). Lesions were qualified and quantified using a Zeiss Axioplan microscope and IDTCC software.
Determination of Chimerism
To determine the chimerism in our transplanted mice we took advantage of the fact that the donor bone marrow is LDLrWT, whereas recipient mice are LDLr-/-. Chimerism was determined in 40 µl peripheral blood samples by quantifying the amount of LDLr-/- DNA relative to a control gene (p50). Genomic DNA was isolated using the GFX Genomic DNA Purification Kit (Amersham Pharmacia Biotech. Inc., Arlington Heights, IL, USA).The samples were assayed in duplicate using the TaqMan Universal PCR Master Mix and the ABI Prism 7900 HT Sequence Detection System (Applied Biosystems 2001) using 300 nM primer and 200 nM probe. LDLr-/- specific primer/probe set : forward 5’-GCTGCA-ACTCATCCATATGCA-3’; reverse 5’-GGAGT-TGTTGA-CCTCGACTCTAGAG-3’; probe 5’-6FAM-CCC-CAGTC-TTTGGGCCTGCGA-TAMRA-3’. p50 specific pri-mer-/probe set: forward 5’-AACCTGGGAAT-ACTTCAT-GTGACTAA-3’; reverse 5’-GCACCAG-AAGTCCAGG-ATTATAGC-3’; probe 5’-TET-TCCGTGC-TTCCAGTGT-TTCAAATACCTTTTT-TAMRA-3’.
After different periods of diet feeding ﴾3,6,9 and 12 weeks), blood was drawn via tail incision into heparinised glass capillaries ﴾Hirschmann Laborgeräte, Eberstadt, Germany) following a 4-hour period of fasting. Plasma cholesterol was determined using the Cholesterol Liquicolor assay (Instruchemie, The Netherlands) following manufacturers instructions.
For leukocyte analysis, heparinised blood samples were washed in erythrocyte lysis buffer (0.155 M NH4Cl, 10 mM NaHCO3). Samples were either stained with Mac1-PE and Gr1-FITC (BD Pharmingen, R&D Systems) for detection of macrophages (Mac1+, Gr1-) and granulocytes (Mac1+, Gr1+); or with B220-PE and CD3-FITC (BD Pharmingen) to detect B-cells (B220+) and T-cells (CD3+). As isotype controls, rIgG2bκ-PE, rIgG2aκ-PE, arHamIg1κ-FITC (BD Pharmingen) and rIgG2bκ-FITC (R&D Systems) were used.
Statistical analysis of atherosclerotic plaque size in the aortic arch and root was performed using GraphPad Prism (Version 4.03, GraphPad Software Inc., San Diego, CA, USA). To test whether CB2-/- transplanted mice had larger plaques in the aortic root or arch than WT transplanted animals, a one-sided non-parametric Mann-Whitney rank sum test was performed. To test whether CB2-/- transplanted mice had a higher plaque severity than WT transplanted mice, a one-sided linear-by-linear association test was performed. As opposed to the Chi-square test, this test accounts for the ordinality of plaque severity. The same test was used for the association between transplant type and pathology scores, but since here the direction of the effect is not anticipated, two-sided p-values are reported. These tests were performed using the library 'coin' from the statistical software R (R Development Core Team (2007); http://www.R-project.org). P values less than 0.05 were regarded significant.
No Influence of CB2 Deficiency on Body Weight, Plasma Cholesterol Levels, Chimerism and Blood Leukocyte Composition
Bone marrow cells from CB2-/- or WT mice were transplanted into lethally irradiated LDLr-/- mice, to yield chimeric LDLr-/- mice with either CB2-/- or WT blood leukocytes. The body weight of all animals decreased on average by 15% within 5 days after irradiation, returning to pre-irradiation levels within 10 days after the transplantation. There were no differences in body weight between CB2-/- and WT transplanted animals (data not shown).
To determine whether the transplantation had an effect on blood leukocyte composition, FACS-analysis was performed on blood samples drawn 5 weeks after transplantation. As shown in Table 1, the percentages of blood granulocytes, monocytes, T-cells and B-cells were not significantly different between CB2-/- and WT transplanted animals. Furthermore, quantitative PCR analysis showed that on average 94% of leukocytes were of donor origin in both groups, indicating a successful engraftment.
Effect of Bone Marrow Transplantation on Chimerism and White Blood Cell Composition, as Measured by Quantitative PCR and FACS Analysis, Respectively
|WT Transplanted||CB2-/- Transplanted|
|White blood cells of donor origin (% chimerism)||94.2 ± 1.4||94.0 ± 0.7|
|T-cells (%)||24.7 ± 7.8||23.0 ± 9.3|
|B-cells (%)||51.0 ± 8.2||53.9 ± 5.8|
|Monocytes (%)||10.4 ± 3.3||7.7 ± 2.3|
|Granulocytes (%)||8.7 ± 4.1||7.1 ± 1.4|
After 3 weeks of high fat diet feeding, plasma cholesterol levels were 25.8 ± 2.1 mmol/l in the CB2-/- transplanted group and 23.5 ± 2.8 mmol/l in the WT transplanted group. In the course of high fat diet feeding, plasma cholesterol levels slightly increased to about 30 mmol/l, but were never significantly different between CB2-/- and WT transplanted animals (Fig. 1).
Plasma cholesterol levels of LDLr-/- transplanted with WT bone marrow (n=18) or CB2-/- bone marrow (n=17) measured in time during high fat diet feeding.
CB2 deficiency enhances early atherosclerotic plaque formation in the aortic arch and root

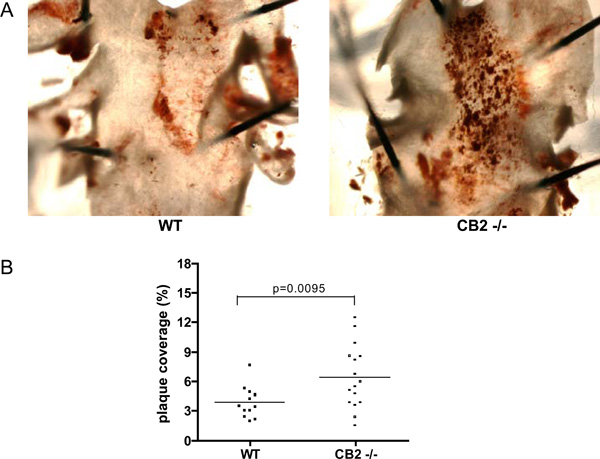

To investigate the role of CB2 in atherosclerotic lesion formation, the lesion area in the aortic arch was determined by en face analysis of oil red O stained tissue (Fig. 2A). Interestingly, the percentage of the aortic arch covered with an atherosclerotic lesion was significantly higher in CB2-/- transplanted animals (6.40 ± 3.21%) than in WT transplanted animals (3.85 ± 1.62%) (Fig. 2B), indicating that haematopoietic CB2 deficiency enhanced atherosclerosis development in the aortic arch.

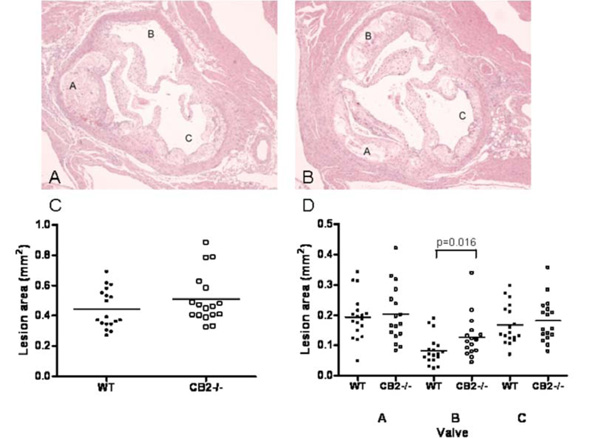

To determine whether this also holds true at other locations in the vasculature, the aortic root of all mice was analyzed. Cross-sections of atherosclerotic plaques found in the aortic root of WT and CB2-/- transplanted LDLr-/- mice are shown in (Fig. 3A). Atherosclerotic lesions were very advanced in both groups, and many contained large numbers of foam cells and inflammatory infiltrates and a necrotic core. Analysis of lesion size in the aortic root showed that haematopoietic deficiency of CB2 had no significant effect on the total atherosclerotic lesion area (Fig. 3B). The average lesion area was 0.51 ± 0.17 µm2 in the CB2-/- transplanted group and 0.45 ± 0.13 µm2 in the WT transplanted group. We know from experience in this model, that one of the three aortic valves demonstrates delayed atherosclerosis development compared to the other two. Indeed, whereas all three aortic valves in the CB2-/- transplanted animal are filled with large atherosclerotic lesions, in the WT transplanted animal one aortic valve is virtually free of atherosclerotic lesions (Fig. 3A, valve B). Since different locations in the vasculature differ in their propensity to develop atherosclerotic lesions, due to e.g. location or differences in shear stress , we analyzed the lesion size for each aortic valve separately. The aortic valve that demonstrated delayed plaque formation was found to contain significantly larger lesions in CB2-/- transplanted animals (0.13 ± 0.07 µm2) as compared to WT transplanted mice (0.08 ± 0.05 µm2, Fig. 3C).
Thus, although 12 weeks of high fat diet feeding caused massive atherosclerosis development in the aortic root of all animals, haematopoietic CB2 deficiency enhances plaque formation in the location in the heart that normally shows slightly delayed atherosclerosis development, thereby corroborating the data obtained from the aortic arch.
Haematopoietic CB2 Deficiency May Enhance Atherosclerosis Plaque Severity

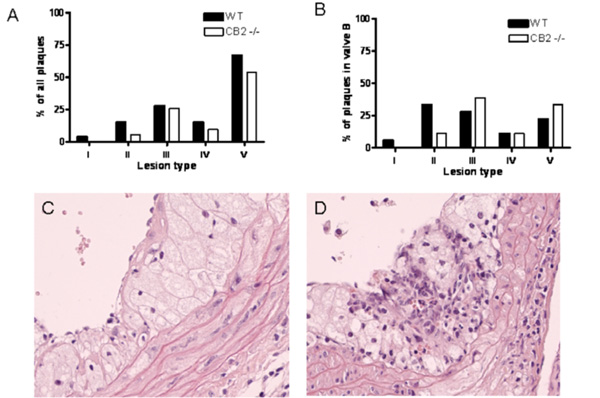

Atherosclerosis severity was qualified in the aortic valve area of the heart by sorting plaques in the categories : I) early fatty streak, II) regular fatty streak, III) mild plaque, IV) moderate plaque, V) severe plaque. When all plaques were taken into account, no difference was found in the distribution over the lesion categories between CB2-/- and WT transplanted animals (Fig. 4A). Most of the atherosclerotic lesions are severe plaques and only a limited number of fatty streaks was found in both animal groups, supporting the conclusion that atherogenesis was advanced in both groups.
In the aortic valve with delayed atherogenesis, i.e. valve B (Fig. 4B), the distribution of the plaques over different lesion types was indicative of earlier lesions; the majority of plaques was categorised as fatty streaks and mild plaques. In valve B, CB2-/- transplanted animals showed less fatty streaks and more mild to severe plaques than WT transplanted animals. This difference, however, did not reach statistical significance (p=0.08).
In addition to plaque severity, several parameters of plaque composition were profiled for all lesions. There was no difference between CB2-/- and WT transplanted animals with regard to the lesion content of collagen, necrosis and monocyte adherence (data not shown). The amount of inflammatory infiltrates containing small macrophages seemed to be higher in CB2-/- compared to WT transplanted animals (score 2.18 ± 0.88, versus 1.78 ± 1.00, respectively), however, this difference was not significant (p=0.29). On the contrary, the amount of large foam cells was significantly lower in CB2-/- compared to WT transplanted animals (score 2.56 ± 0.70, versus 2.06 ± 0.56, respectively; p=0.04; see Fig. 4C and D for representative photomicrographs of large foam cell areas and inflammatory infiltrates).
These data together might suggest that CB2 deficiency enhances plaque severity and the inflammatory phenotype of an atherosclerotic lesion.
In the present study, the role of haematopoietic CB2 deficiency on atherosclerosis development in LDLr-/- mice was examined. The results show that CB2 deficiency aggravates atherosclerosis in the early stages, as measured in the aortic root and arch. However, when atherosclerosis is developed to a severe level, lack of CB2 does not further enhance atherosclerosis. Thus, endocannabinoid signalling via CB2 seems to have a protective effect in atherosclerosis development.
The current study confirms previously reported data demonstrating that THC, a general cannabinoid receptor agonist, can inhibit development of atherosclerosis in ApoE-/- mice . Using genetic ablation of CB2 we have now demonstrated that at least part of the effects observed using THC is highly likely mediated through CB2. CB2 deficiency resulted in aggravation of early atherosclerosis, not showing an effect on late atherosclerosis, while treatment with THC showed an effect on both early atherosclerosis and existing atherosclerotic lesions . This difference could be explained by the properties of THC, which has been shown to bind to both CB1 and CB2. Since CB1 has been detected on inflammatory cells as well, it is very well possible that THC could exert additional non-CB2 mediated effects on atherogenesis. For example, recent studies showed that a cannabinoid receptor agonist (WIN55, 212) enhanced the accumulation of cholesterol in macrophages via the CB1 receptor . Additionally, THC has been described to function as a ligand of the nuclear receptor peroxisome proliferator-activated receptor gamma (PPARγ), via which it could cause vasorelaxation and exert cardioprotective effects . However, in vitro, some of the anti-atherosclerotic effects of THC can be blocked by a selective CB2 antagonist , suggesting that THC would exert its effect mainly via CB2.
Alternatively, the difference between our study and the work of Steffens and coworkers could be explained by the two different mouse models that were used. It has been described that atherosclerotic lesion development in the aortic root is faster in LDLr-/- mice as compared to the ApoE-/- mice used by Steffens et al. , causing the atherosclerosis in the aortic arch to be more advanced in the current study.
Different mechanisms of action may underlie the effect of haematopoietic CB2 deficiency in development of atherosclerosis. Our studies show that the effect is not due to elevated plasma cholesterol levels or changed white blood cell compositions, since there were no differences found in these parameters for the WT and CB2-/- transplanted animals. With respect to plaque composition parameters, our study showed a slightly enhanced amount of inflammatory infiltrates and a significantly reduced amount of foam cells in the CB2-/- transplanted animals. It has been reported that CB1 agonism can enhance macrophage cholesterol accumulation . Whether CB2 antagonism or deficiency blocks cholesterol uptake and thereby reduces foam cell formation remains to be investigated. To our opinion, it is most likely that aggravation of early atherosclerosis in CB2-/- transplanted mice is induced by increased monocyte migration into the vessel wall or reduced macrophage apoptosis propensity.
One of the hallmark processes in early atherosclerosis is the migration of monocytes from the circulation into the vascular wall, after which differentiation into a macrophage enables the cell to start accumulating lipids. A number of studies have shown that cannabinoids can influence monocyte or macrophage migration. The endocannabinoid 2-arachidonoylglycerol (2-AG) has been found to act as a chemoattractant for monocytes , whereas synthetic ligands for the cannabinoid receptor generally do not possess chemoattractant properties. These synthetic cannabinoids, however, are often described to be able to inhibit monocyte migration induced by either endocannabinoids or chemokines [10, 14, 21]. The fact that also CB2 inverse agonists have been described to reduce monocyte migration [9, 22], suggests that the mere removal of a cannabinoid gradient is enough to [10, 14, 21] influence migration . The migration modulatory effects of cannabinoids have been ascribed to the CB2 receptor mainly by the finding that the selective CB2 antagonist SR144528 can inhibit the effects. To rule out the possibility that conclusions are drawn on the basis of aspecific effects of cannabinoid compounds, our investigation using CB2 knockout mice was warranted.
Very recently, it was discovered that CB2 expression on the macrophage enhances the propensity to go into apoptosis upon treatment with oxidised low density lipoproteins (OxLDL). CB2 deficient macrophages were found to be resistant to OxLDL-induced apoptosis . The consequences of macrophage apoptosis in an atherosclerotic lesion are multiple: there is strong evidence that macrophage apoptosis reduces early lesion formation, but can aggravate atherosclerosis in advanced lesions .
Another key inflammatory process in which a function for the CB2 receptor has been documented, is the secretion of cytokines. For many of these cytokines, a proatherogenic (e.g. TNFα) or antiatherogenic (e.g. IL-10) role has been reported (reviewed in ). The balance in proinflammatory (e.g. IFNγ, TNFα, IL-6) and anti-inflammatory (e.g. IL-10) cytokines has been suggested to be shifted to the anti-inflammatory side by cannabinoids , however, the opposite effect has also been reported [27, 28]. So in vivo, cannabinoids might suppress or increase production of pro-inflammatory cytokines , making it difficult to speculate on the effects of cytokine modulation by CB2 deficiency in atherosclerosis.
Taken together, this is the first study investigating the role of the CB2 receptor in atherosclerosis, using the CB2 deficient mouse. The authors Mach and Steffens already posed a hypothesis that endocannabinoid signalling could affect atherogenesis . The current study shows that a lack of endocannabinoid signalling via the CB2 receptor in haematopoietic cells enhances early atherogenesis in LDL receptor deficient mice. These data suggest that enhancement of CB2 signalling, either by raising endocannabinoid levels or treatment with a selective CB2 agonists, can form a novel treatment of atherosclerosis.
The authors would like to greatly acknowledge statistical analyses on plaque severity and pathology data by Dr. Mark van de Wiel (Dept. of Epidemiology & Biostatistics, VU University medical center, Amsterdam, The Netherlands).
