Soft Tissue Attenuation Patterns Associated with Supine Acquisition SPECT Myocardial Perfusion Imaging: A Descriptive Study

Rami Doukky 1, *, Mouyyad Rahaby 2, Tareq Alyousef 2, Raj Vashistha 2, Dave Chawla 3, Amit P Amin 4
1 Section of Cardiology, Nuclear Cardiology and Stress Testing Laboratories, Rush University Medical Center, Chicago, IL, USA
2 Division of Adult Cardiology, John H. Stroger, Jr. Hospital of Cook County, Chicago, IL, USA
3 Section of Cardiology, Rush University Medical Center, Chicago, IL, USA
4 Division of Cardiology, John H. Stroger, Jr. Hospital of Cook County, Chicago, IL, USA

Article Metrics

CrossRef Citations:
Total Statistics:

Full-Text HTML Views: 992
Abstract HTML Views: 725
PDF Downloads: 253
Total Views/Downloads: 1970
Unique Statistics:

Full-Text HTML Views: 498
Abstract HTML Views: 403
PDF Downloads: 182
Total Views/Downloads: 1083

© Doukky et al.; Licensee Bentham Open.

open-access license: This is an open access article licensed under the terms of the Creative Commons Attribution Non-Commercial License ( which permits unrestricted, non-commercial use, distribution and reproduction in any medium, provided the work is properly cited.

* Address correspondence to this author at the Rush University Medical Center, Section of Cardiology, 1653 W. Congress Pkwy, Chicago, IL 60612, USA; Tel: 312-563-2534; Fax: 312-942-6334; E-mail:



Soft-tissue attenuation patterns in SPECT-myocardial perfusion imaging (MPI) of supine acquisition systems are well recognized. Their prevalence and interaction with body-habitus and gender are ill-defined, which we sought to describe in this study.


In a cross-sectional study, we described the prevalence of soft-tissue attenuation patterns in normal SPECT-MPI studies acquired with a supine patient-position SPECT system.


In 263 normal, clinically-indicated, supine-acquisition SPECT-MPIs the attenuation patterns observed were: anterior (35.4%), inferior (41.8%) and lateral (13.3%). Anterior attenuation was more prevalent among women (50.7% vs. 15.7%, P<0.001) and was associated with chest circumference among men. Conversely, inferior attenuation was more prevalent among men (78.3% vs. 13.5%, P<0.001) and was not affected by body-habitus. Lateral attenuation was more common among women (19.6% vs. 5.2%, p=0.001) and was associated with obesity (p=0.015).


Soft-tissue attenuation artifacts are common in supine-acquisition SPECT-MPI. The recognition of their prevalence and association with body-habitus and gender is critical for the accurate interpretation of SPECT-MPI.

Keywords: SPECT, myocardial perfusion imaging, soft tissue attenuation, artifacts, supine, SPECT acquisition, interpretation..


Soft tissue attenuation remains problematic for myocardial perfusion imaging (MPI) with Single Photon Emission Computed Tomography (SPECT) [1]. Hybrid SPECT-Computed Tomography (CT) systems address attenuation correction very effectively [2-4], but they remain expensive and are not commonly used outside large centers [5], Therefore, practicing physicians are likely to continue to interpret non-corrected SPECT-MPI for years to come . Therefore, the recognition of attenuation patterns associated with SPECT-MPI is important for accurate MPI interpretation [6]. Fortunately, practicing physicians are well versed with the attenuation patterns associated with supine acquisition SPECT-MPI [6]. However, their prevalence and interaction with gender and body habitus are not well described in the literature. In a previous report, we compared the attenuation patterns observed in supine vs. upright acquisition [7]. In this investigation, we further examined the association of the attenuation patterns seen in supine imaging with gender and body habitus.


We conducted a retrospective cross-sectional evaluation of 602 consecutive clinically-indicated outpatient SPECT-MPI studies performed between August 2007 and July 2008 using a supine-acquisition cardiac-SPECT system (Siemens dual-head, 90-degree ECAM), which “passed” a SPECT phantom study conformed to ACR guidelines [8], scoring “satisfactory” for spatial resolution, uniformity and contrast. A one-day Technetium-99m tetrofosmin protocol was implemented [9]. Stress and acquisition protocols conformed to ASNC guidelines [10-12]. Women were imaged without a bra. A Butterworth post-processing filter of order 5, cut-off 0.6 cycle/cm was applied to the three dimensional reconstructed volume. Image processing and analysis was performed with 4DM-SPECT software (INVIA - Ann Arbor, MI).

To isolate attenuation artifacts from perfusion abnormalities we evaluated only normal MPI studies in a population with a low prevalence of coronary artery disease (CAD). First, we excluded subjects with clinically established CAD or typical angina [13]. Second, all MPI scans were compared quantitatively to a database of normal MPI scans from individuals with a low likelihood of CAD obtained on an identical camera. All subjects with a summed stress score (SSS) > 2, summed difference score (SDS) > 0 and those with quantitatively identified wall motion abnormalities were excluded. Consequently, we were left with 263 subjects. Third, we confirmed that the remaining group of patients were at low CAD risk; as the calculated 10-year Framingham coronary heart disease risk [13] was relatively low [13.2% (±10.4)] and the mean probability of obstructive CAD among symptomatic patients [14] was also low [14.36% (±10.3)]. By this 3-step process, we ensured that our study population had a low likelihood of CAD and quantitatively normal MPI scans. We thus had a high level of confidence that the vast majority of MPI scans included in the analysis were “truly” normal. Therefore, we considered any reduced activity identified by subsequent analysis to be due to attenuation rather than true perfusion abnormality.

In the absence of a standard definition of an attenuation defect, we adopted a methodology to define them in a dichotomous fashion. Attenuation defects were classified a priori, based on their locations on a 17-segment model [12] to anterior, inferior and lateral, as defined in Fig. (1). Only stress-SPECT images were analyzed quantitatively to identify attenuation defects. The quantitative analysis was performed using a 17-segment polar map display of photon count statistics normalized in percentage to the highest count pixel. An attenuation defect was considered to be “present” if the normalized count statistics in one or more contiguous myocardial segments was decreased by more than 20 percentage points from that of the highest activity segment in the plot. Normalized count percentages in all contiguous segments constituting one defect were averaged and tabulated. The defect was assigned a classification (anterior, inferior or lateral) based on the location of the segment of minimum activity. The detailed methodology used in this study was published elsewhere [7]. The “density” of an attenuation defect was considered to be the inverse of normalized count statistics of photon activity; as the lower the normalized count statistics in a defect was, the denser the attenuation.

Fig. (1).

Definition of attenuation defects. A.Anterior wall attenuation was defined as reduced activity in the anterior segments with or without involvement of the anterolateral and/or anteroseptal segments. B.Inferior wall attenuation was defined as reduced activity in the inferior segments with or without involvement of the inferoseptal and/or inferolateral segments. C.Lateral wall attenuation was defined as reduced activity in the inferolateral and/or anterolateral segments, but sparing the anterior and inferior segments. Reprinted with permission (Chawla D et al. J Nucl Cardiol. 2011 [7]).

Fig. (2).

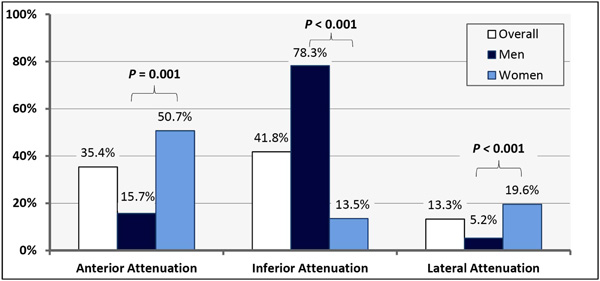

Attenuation Patterns Observed.
