Calcified Left Ventricular Aneurysm: “An Egg in the Heart”
Pankaj Garg*, Erwin Rodrigues
Identifiers and Pagination:Year: 2010
First Page: 214
Last Page: 215
Publisher ID: TOCMJ-4-214
Article History:Received Date: 4/10/2010
Revision Received Date: 22/10/2010
Acceptance Date: 25/10/2010
Electronic publication date: 26/11/2010
Collection year: 2010
open-access license: This is an open access article licensed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted, non-commercial use, distribution and reproduction in any medium, provided the work is properly cited.
We present a peculiar case of left ventricular aneurysm which had calcified over 14 years post anterior myocardial infarction and appears to be like an egg in the heart. Previous cases reported of calcified LV ring were associated with Left Ventricular mural thrombus. In our patient, we did not identify any mural thrombus.
A 59 year old gentleman presented with worsening symptoms shortness of breath, orthopnea and increasing ankle swelling. His past medical history included extensive anterior wall myocardial infarction with cardiogenic shock 14 years ago, diabetes mellitus and hypertension. ECG on this admission revealed left bundle branch block and left axis deviation. His chest radiogram revealed a peculiar calcified egg in the heart (Fig. 1). He was treated with digoxin and diuretics which improved his symptoms. His trans-thoracic echocardiogram revealed severely dilated left ventricle with severely impaired systolic function, mild mitral regurgitation and bi-atrial enlargement (Fig. 2). It was difficult to rule out the presence of apical thrombus on his echocardiogram. We performed Cardiac MRI with multi planar black blood and cine white blood images together with delayed post gadolinium enhanced scar imaging. Cardiac MR was done to assess viability and anatomical details of LV aneurysm. This confirmed full thickness scarring in aneurysmal distal apical left ventricle and did not reveal any thrombus at the apex (Fig. 3). The following measurements were obtained: ejection fraction of 10% and stroke volume of 49mls. Contrary to two previously reported cases, our case did not reveal an apical thrombus associated with calcified aneurysm.[1,2] However, he was warfarinzed considering his high thrombo-embolic risk.
Chest x-ray showing cardiomegaly and an oval shaped calcified structure related to Anterio-apical left ventricular aneurysm.

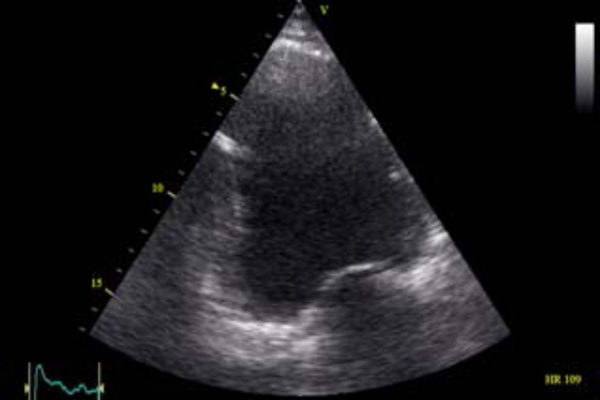

Transthoracic Echocardiography showing dilated left ventricle and severely reduced ejection fraction. However, mural thrombus could not be ruled out.

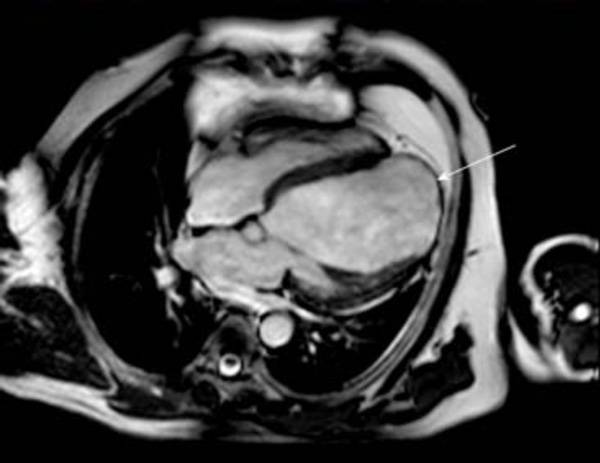

Cardiac MR in four chamber view showing an enlarged left ventricle and apical aneurismal cavity (arrow). No thrombus is seen in LV cavity.
