Comparison of the Effects of Dialysis Methods (Haemodialysis vs Peritoneal Dialysis) on Diastolic Left Ventricular Function Dialysis Methods and Diastolic Function

Fedoua Ellouali1, 3, *, Fatimazahra Berkchi2, Rabia Bayahia2, Loubna Benamar2, Mohammed Cherti1
1 Cardiology "B" Department, Ibn Sina Hospital, Mohammed V University, Souissi, Rabat, Morocco
2 Nephrology and Dialysis Center, Ibn Sina Hospital. Mohammed V University, Souissi, Rabat, Morocco
3 Laboratory of Biostatistics, Clinical Research and Epidemiology, Faculty of Medicine and Pharmacy, Mohammed V University, Souissi, Rabat, Morocco

Article Metrics

CrossRef Citations:
Total Statistics:

Full-Text HTML Views: 1721
Abstract HTML Views: 697
PDF Downloads: 331
ePub Downloads: 285
Total Views/Downloads: 3034
Unique Statistics:

Full-Text HTML Views: 889
Abstract HTML Views: 419
PDF Downloads: 242
ePub Downloads: 210
Total Views/Downloads: 1760

Creative Commons License
© Ellouali et al.; Licensee Bentham Open.

open-access license: This is an open access article licensed under the terms of the Creative Commons Attribution-Non-Commercial 4.0 International Public License (CC BY-NC 4.0) (, which permits unrestricted, non-commercial use, distribution and reproduction in any medium, provided the work is properly cited.

* Address correspondence to this author at the Secteur 16 bloc I num 8, Hay Riad, Rabat, 10100, Morocco; Tel: 00212663507524; Fax: 00212537727263; E-mail:



In patients undergoing chronic dialysis, several factors appear to influence the occurrence of cardiac abnormalities. The aim of our study was to evaluate the effects of two different methods of renal replacement therapy (chronic haemodialysis (HD) and continuous ambulatory peritoneal dialysis (CAPD)) on left ventricular (LV) diastolic function.

Patients and Methods:

We enrolled 63 patients: 21 patients on CAPD, and 42 age- and gender-matched patients on HD; 35 patients were men (55.6%). Median of age was 46.4 (35-57) years. The median duration of renal replacement therapy was 3(2-5) years.


The two groups (HD vs PD) were similar concerning body mass index, dialysis duration and cardiovascular risk factors. The comparison of echocardiographic parameters showed statistically significant differences between two groups, regarding the presence of calcification, cardiac effusion, severely abnormal left ventricular hypertrophy(LVH) and the ratio of mitral velocity to early diastolic velocity of the mitral annulus (E/e’) >13 (p= 0.001, p= 0.003, p= 0.02, p= 0.004, respectively). In multivariate analysis, an E/e’>13 was higher in PD group ( OR= 5.8, CI [1.3-25.5], p=0.002).


The method of dialysis seems to influence LV diastolic function. We observed a higher prevalence of diastolic LV dysfunction in the PD group. Echocardiographic follow up is essential as this could improve the management of cardiovascular complications in dialysis patients.

Keywords: Cardiac computed tomography, left main compression, pulmonary hypertension.


Echocardiography is the most useful imaging technique for initial cardiac assessment, enabling detailed examination of the main cardiac structures and effective assessment of the left ventricular (LV) mass and changes in ventricular function [1]. Indeed, in patients undergoing chronic dialysis, left ventricular hypertrophy (LVH) and cardiac geometry influence LV dysfunction [2]. Several factors appear to influence the occurrence of cardiac abnormalities. Whether haemodialysis (HD) or peritoneal dialysis (PD) has a different impact on echocardiographic parameters has been previously investigated, but the results are heterogeneous and contradictory.

The aim of our study was to evaluate the effects of two different methods of renal replacement therapy (chronic HD and continuous ambulatory peritoneal dialysis (CAPD)) on echocardiographic parameters.



We enrolled 63 patients; 21 patients on CAPD, and 42 age- and gender-matched patients on HD after obtaining informed consent.

35 patients were men (55.6 %). The median of age was 46.4 (35-57) years. The median of duration of renal replacement therapy was 3 (2-5) years.

Haemodialysis was performed three times a week for 4 h. Echocardiographic parameters were measured within 2 h after a dialysis session or peritoneal exchange.

Fig. (1).

Comparison of the use of antihypertensive drugs in the two groups of the study.

Inclusion Criteria

We included patients on renal therapy replacement for >6 months, with an adequate acoustic window for the echocardiography.

Exclusion Criteria

We excluded patients with severe anaemia, uncontrolled hypertension, diabetes, rhythm or conduction abnormality, valvular heart disease, past history of heart failure or unstable angina.


Therapeutic Modalities

CAPD consists of 3 to 4 exchanges/day. All haemodialysis patients had a radial arteriovenous fistula. Haemodialysis was carried out three times a week for 4 h with standard bicarbonate dialysis.

Clinical Data

Baseline characteristics were collected: age, gender, dialysis duration (in years), hypertension, hyperlipidaemia and smoking.

Hypertension was defined as systolic blood pressure (BP) ≥140 mmHg, diastolic BP ≥90 mmHg or the use of antihypertensive medication. For hypertensive patients, the strict control of BP was required and treatment with renin-angiotensin-system inhibitors was introduced.

Hyperlipidaemia was defined as total cholesterol ≥200 mg/dL, low-density lipoprotein cholesterol (LDL-C) ≥130 mg/dL or the use of lipid-lowering medication.

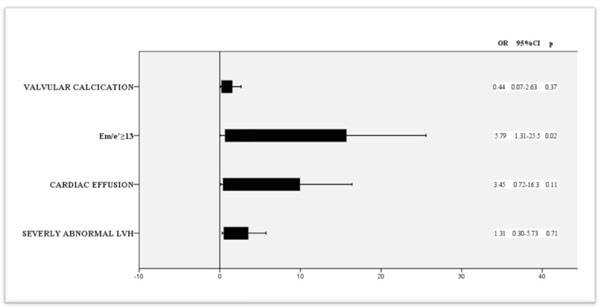

Fig. (2).

The association between dialysis methods and echocardiographic parameters. Multiple logistic regression model of statistically significant regressors.

Biological Data

Routine laboratory methods were used to measure biochemical parameters: haemoglobin, C-reactive protein (CRP), phosphorus, calcium, rate of intact parathyroid hormone (iPTH). Residual renal function (RRF) was estimated by calculating glomerular filtration rate (GFR). GFR was calculated ref according to the formula: GFR = Uvol/U × {Uurea[(PreUrea + PostUrea)/2] + Ucreat/[(PreCreat +PostCreat)/2]} calcuSA (SA: surface area in m2, t: duration of collection between dialyses in minutesUvol: urine collection volume in mL, PreUrea and PreCreat: pre-dialysis urea and creatinine concentration in blood samples at the end of the collection, PostUrea and PostCreat: post-dialysis urea and creatinine concentration in blood samples at the beginning of collection, and : urea and creatinine urine concentrations) [3]. The surface area (SA) was estimated by the Mosteller formula: SA= √L x M/3600 (SA in m2, weight in Kg, height in cm) [4].

Clinical and laboratory criteria for adequate nutrition were an albumin ≥ 35 g/l and a body mass index (BMI) ≥ 21 kg/m2. Anaemia was defined as haemoglobin<11g/dl.

Echocardiographic Data

Echocardiography was achieved by a General Electric, Vivid 7 ultrasound system. The same cardiologist performed all echocardiographic examinations. The patients were examined in the left lateral decubitus position and data was collected in standard parasternal long-axis, short-axis, and apical views. Measurements were acquired by averaging three cardiac cycles.

Left ventricular hypertrophy is defined by an increase in LV mass (LVM) index > 95 g/m2 in women and > 115 g/m2 in men. LVM was considered as severely abnormal if LVM ≥122 g/m2 in women and ≥149g/m2 in men.

The following anatomically validated equation was used to estimate LVM: LVM = 0.8[1.04(IVS + LVIDd + LVPW)3 – LVIDd3] + 0.6; where IVS is the diastolic septal thickness, LVIDd is the diastolic dimension of the LV cavity and LVPW is the diastolic thickness of the posterior wall [5].

Teicholz’s and Simpson’s methods were used to evaluate LV ejection fraction. Echocardiographic maximum left atrial volume was measured from apical 4- and 2-chamber views by biplane area-length [6, 7].

The values of the E wave and A wave of mitral flow were collected (on apical 4-chamber view, a 3 mm, at the level of the basal mitral annulus). Tissue Doppler velocities of longitudinal mitral annular motion were measured in median and lateral segment of the basal mitral annulus (on apical 4-chamber view) and the mean e’ (early diastolic velocity) was used to estimate E/e’.

Peak systolic velocity (S), early (e') diastolic velocities were assessed for right and left annular side, successively.

Statistical Data

Continuous variables are expressed as mean ± standard deviation (or median with inter-quartile range (IQR) when the distribution is non-normal). Qualitative variables were analysed using the Chi2 test (or the Fisher exact test according to the number of cases), and quantitative variables were analysed using the t test (or a nonparametric test according to the normality of distribution). Statistical significance was defined as P < 0.05. Statistical analysis was performed using SPSS for Windows, version 11.0.

Table 1.

Comparison of demographic and biological characteristics.

HD group
PD group
Male gender (%)
Age (years)
21 (50)
14 (66.6)
BMI (Kg/m²) 22.8±3.7 22.6±6.8 0.57
Weight (kg)
Hypertension (%)
Dialyse duration (years) 3[2-6] 3[2-4.5] 0.07
Triglycerides (mmol/l) 1.1 [0.8-1.5] 1.3 [0.9-1.8] 0.45
LDL-C (mmol/l)
CRP (mg/l)
1.1 [0.9-1.27]
1.1 [0.9-1.4]
Uric acid (mg/l)
Calcium (mg/dl)
Phosphorus (mg/dl)
Anaemia (%)
Smoking (%)
9 ±0.8
8.6 ±0.9


The mean body weight was 66 ±14.2 kg. Hypertension was noted in 50.8 % (31 cases). Antihypertensive drugs were similarly used in the two groups (Fig. 1). Nine patients (14.8%) were smokers, and 21 patients (33.3 %) had dyslipidaemia. The two groups (HD vs PD) were similar concerning body mass index, dialysis duration, residual renal function, anaemia and cardiovascular risk factors. Comparison of biological characteristics showed no statistically significant difference between the two groups. Data is reported in Table 1. In our study, LVH was noted in 28 patients (44.4%) and LVM was considered as severely abnormal in 19 patients (20.2%). There was no statistically significant difference between the two groups concerning LVH (p=0.45) but severely abnormal LVH was more frequent in PD group (23.8% in HD group vs 42.9% in PD group, p=0.02). There was a significant difference between the two groups concerning the presence of calcification, the presence of cardiac effusion and E/e’ >13 (p= 0.001, p= 0.003, p= 0.004, respectively). The comparison of echocardiographic parameters is shown in Tables 2 and 3. Multivariate logistic regression was used to evaluate the association of each significant echocardiographic parameters with dialysis methods. All significant variables were considered candidate confounders. In this regression model, and after adjustment for confounders, an E/e’>13 was higer in PD group CI(OR= 5.8;CI [1.3-25.5], p=0.002) (Fig. 2).


Is it Relevant to Measure Diastolic Function of the LV?

Mortality is known to increase with LV diastolic dysfunction [8].

Hsiao and al showed that in the uraemic population, LV dysfunction, LVM index and a high post-dialytic E/e’ are prognostic of major events [8]. In the same way, in a study by Kim and al, diastolic dysfunction was a significant marker of rapid decline in residual renal function and the occurrence of cardiovascular events in patients placed in a peritoneal dialysis program [9].

What are the Methods of Evaluation of Diastolic Function?

In CKD (chronic kidney disease) patients, TDI is more sensitive to detect diastolic dysfunction than conventional echocardiography [10-13]. Despite the relative fluid deficiency after HD, which can induce a decrease of Em and Am, it is very important to evaluate all parameters of LV diastolic function in this population [7]. Apart from LVM and systolic function, the E/Em ratio displayed important additional long-term prognostic information [14].

Table 2.

Comparison of Comparison of the two-dimensional and M-mode findings.

HD Group
n= 42
PD Group
n= 21
LVEDD (mm)
LVEDD index (mm/m2)
LVESD (mm)
LVESD index (mm/m2)
IVS (mm)
PW (mm)
LVM (g)
LVM index (g/m2)
LVH (n (%))
Severely abnormal LVH (n(%))
EF (%)
RVEDD (mm)
TAPSE (mm)
RVS (mm)
17 (40.5%)
10 (23.8%)
IVC diameter (mm)
RA Area (cm2)
LA Area (cm2)
LA volume (ml)
PASP (mmHg)
Valvular calcification (n(%))
57 [39-72]
Table 3.

Comparison of filling pressures features between the two groups.

HD Group
n= 42
PD Group
n= 21
Em/Am ≥2 0(0%) 1(4.7%) 0. 09
Em/e’ ≥13 5(11.9%) 8(38.1%) 0.004
PASP >35mmHg 5(11.9%) 1(4.7%) 0.55
Pericardial effusion 5(11.9%) 10(47.6%) 0.003
LA volume >52ml 15(35.7%) 7(33.3%) 0.36

What are the Effects of Dialysis Methods on LV Diastolic Function?

Diastolic dysfunction has been observed in patients receiving renal replacement therapy for ESRD in many studies [15, 16]. In a study by Duran et al., diastolic function of LV was not significantly altered after maintenance haemodialysis treatment. They demonstrated that in the long run, the acute changes of volume, electrolytes and autonomic regulation due to haemodialysis session does not affected left diastolic function [17]. For Lee et al., the prevalence and severity of diastolic LV dysfunction is higher in PD patients [18].

Some authors suggest that LVM and diastolic function are closely related to each other in all dialysis patients [19]. Moreover, in a study by Kimura and al., LVMI was an independent determinant of LV diastolic dysfunction in patients on HD [15]. The prevalence of LVH was higher in conventional HD compared to PD [15]. According to the Framingham criteria, its prevalence was 68.8% in HD patients and 45.2% in PD patients [20]. According to that observation, we introduced LVH in our consideration in the evaluation of difference between the two groups concerning LV diastolic function. In fact, in the present study, we observed that the prevalence of LVH was 44.4% (40.5% in HD patients and 52.4% in PD patients, p= NS). This difference with literature data can be explained by higher age and higher frequency of hypertension in our PD group (although the comparative analysis finds no significant difference concerning those parameters).

However, we introduced severe LVH in a multivariate regression model. We noticed a higher prevalence of diastolic LV dysfunction in the PD group. We also noted that an E/e’ >13 is the stronger parameter for detection of this LV diastolic dysfunction.


Invasive haemodynamics to explore more filling pressure data were not included. The strain and CMR were not performed, that is why we have not been able to explore further the systolic function of the right ventricle.


This study was carried out retrospectively; therefore, no ethics committee approval was required. There is no patient identification within this publication.


AVF  = ArterioVenous Fistula
CMR  = Cardiovascular Magnetic Resonance
EF  = Ejection Fraction
ESRD  = End Stage Renal Disease
GRF  = Glomerular Filtration Rate
HD  = Haemodialysis
IVC  = Inferior Vena Cava
IVS  = Interventricular Septum
LV  = Left Ventricle
LVEDD  = Left Ventricle End Diastolic Diameter
LVESD  = Left Ventricle End Systolic Diameter
LVH  = Left Ventricular Hypertrophy
LVM  = Left Ventricular Mass
LVPW  = Left Ventricular Posterior Wall
PD  = Peritoneal Dialysis
RAAS  = Renin-Angiotensin-Aldosterone System
RRF  = Residual Renal Function
RV  = Right Ventricle
TDI  = Tissue Doppler Imaging


The authors confirm that this article content has no conflict of interest.


Declared none.


[1] Zoccali C. How important is echocardiography for risk stratification in follow-up of patients with chronic kidney disease? Nat Clin Pract Nephrol 2007; 3(4): 178-9.
[2] Zoccali C, Benedetto FA, Mallamaci F, et al. Prognostic impact of the indexation of left ventricular mass in patients undergoing dialysis. J Am Soc Nephrol 2001; 12(12): 2768-74.
[3] Kessler M, Canaud B, Pedrini L, et al. Section I. Measurement of renal function, when to refer and when to start dialysis. Nephrol Dial Transplant 2002; 17(Suppl. 7): 7-15.
[4] Mosteller RD. Simplified calculation of body-surface area. N Engl J Med 1987; 317(17): 1098.
[5] Devereux RB, Alonso DR, Lutas EM, et al. Echocardiographic assessment of left ventricular hypertrophy: comparison to necropsy findings. Am J Cardiol 1986; 57(6): 450-8.
[6] Ujino K, Barnes ME, Cha SS, et al. Two-dimensional echocardiographic methods for assessment of left atrial volume. Am J Cardiol 2006; 98: 1185-8.
[7] Lang RM, Bierig M, Devereux RB, et al. Recommendations for chamber quantification: a report from the American Society of Echocardiography’s Guidelines and Standards Committee and the Chamber Quantification Writing Group, developed in conjunction with the European Association of Echocardiography, a branch of the European Society of Cardiology. J Am Soc Echocardiogr 2005; 18: 1440-63.
[8] Hsiao SH, Lin SK, Huang WC, et al. Para-meters derived from myocardial tissue dop-pler imaging associated with major events in patients with uremia. Acta Cardiol Sin 2007; 23: 254-62.
[9] Kim JK, Kim SG, Kim MG, et al. Left ventricular diastolic dysfunction as a predictor of rapid decline of residual renal function in patients with peritoneal dialysis. J Am Soc Echocardiogr 2012; 25(4): 411-20.
[10] Hayashi SY, Brodin LA, Alvestrand A, et al. Improvement of cardiac function after haemodialysis. Quantitative evaluation by colour tissue velocity imaging. Nephrol Dial Transplant 2004; 19(6): 1497-506.
[11] Garcia MJ, Thomas JD, Klein AL. New Doppler echocardiographic applications for the study of diastolic function. J Am Coll Cardiol 1998; 32(4): 865-75.
[12] Nagueh SF, Middleton KJ, Kopelen HA, Zoghbi WA, Quiñones MA. Doppler tissue imaging: a noninvasive technique for evaluation of left ventricular relaxation and estimation of filling pressures. J Am Coll Cardiol 1997; 30(6): 1527-33.
[13] Hayashi SY, Rohani M, Lindholm B, et al. Left ventricular function in patients with chronic kidney disease evaluated by colour tissue Doppler velocity imaging. Nephrol Dial Transplant 2006; 21(1): 125-32.
[14] Wang AY, Wang M, Lam CW, Chan IH, Zhang Y, Sanderson JE. Left ventricular filling pressure by Doppler echocardiography in patients with end-stage renal disease. Hypertension 2008; 52(1): 107-14.
[15] Kimura H, Takeda K, Tsuruya K, et al. Left ventricular mass index is an independent determinant of diastolic dysfunction in patients on chronic hemodialysis: a tissue Doppler imaging study. Nephron Clin Pract 2011; 117(1): c67-73.
[16] Raizada V, Skipper B, Taylor RA, et al. Left ventricular diastolic function in patients on hemodialysis. J Investig Med 2010; 58(6): 791-5.
[17] Duran M, Unal A, Inanc MT, Esin F, Yilmaz Y, Ornek E. Effect of maintenance hemodialysis on diastolic left ventricular function in end-stage renal disease. Clinics (Sao Paulo) 2010; 65(10): 979-84.
[18] Lee J-K, Lin HH, Tsai CT, et al. Differential association of proinflammatory cytokines with left ventricular diastolic dysfunction in subjects with and without continuous ambulatory peritoneal dialysis. Nutr Metab Cardiovasc Dis 2012; 22(11): 974-80.
[19] Weiss G, Lhotta K, Reibnegger G, König P, Knapp E. Divergent effects of hemodialysis and continuous ambulatory peritoneal dialysis on cardiac diastolic function. Perit Dial Int 1997; 17(4): 353-9.
[20] Tian JP, Wang T, Wang H, et al. The prevalence of left ventricular hypertrophy in Chinese hemodialysis patients is higher than that in peritoneal dialysis patients. Ren Fail 2008; 30(4): 391-400.
